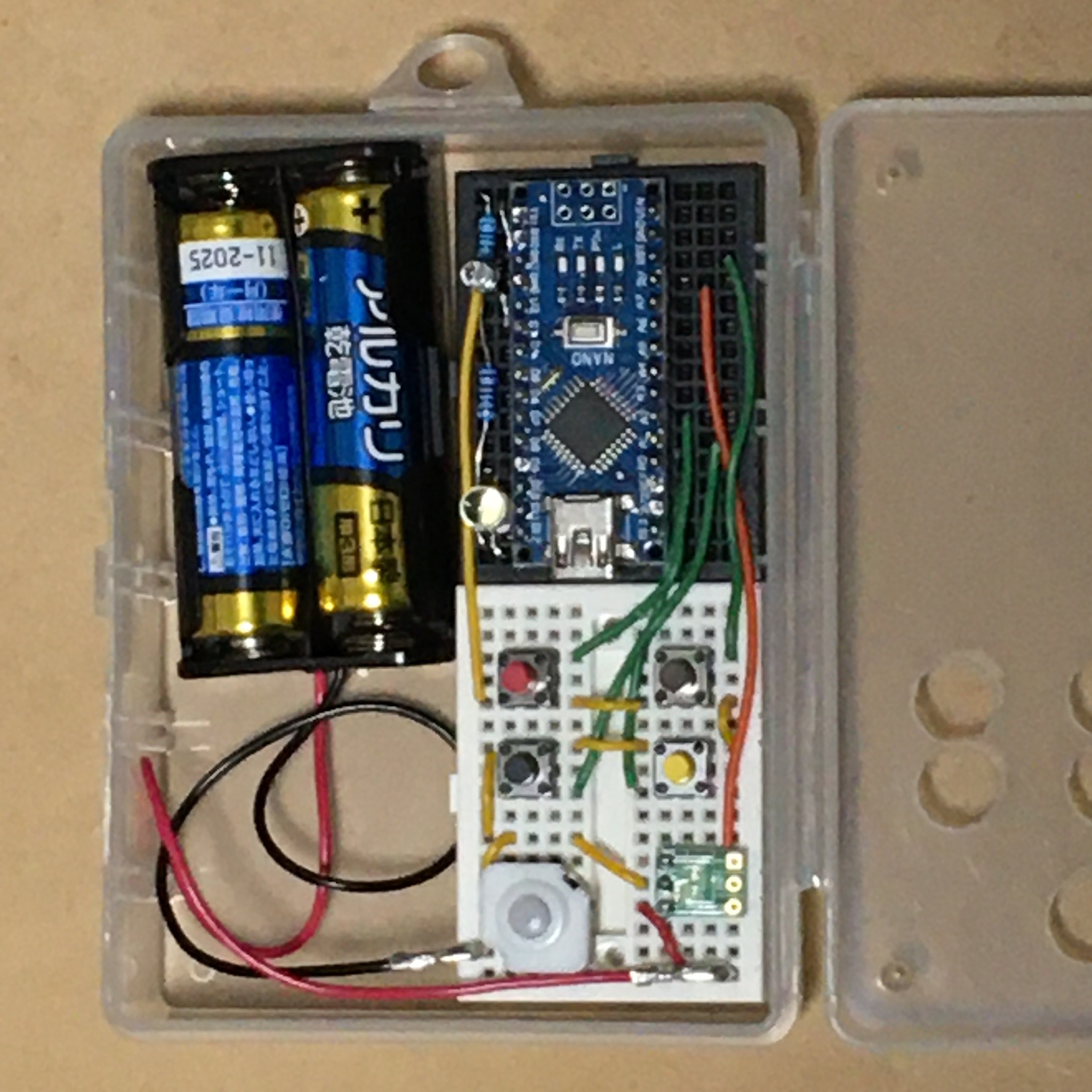

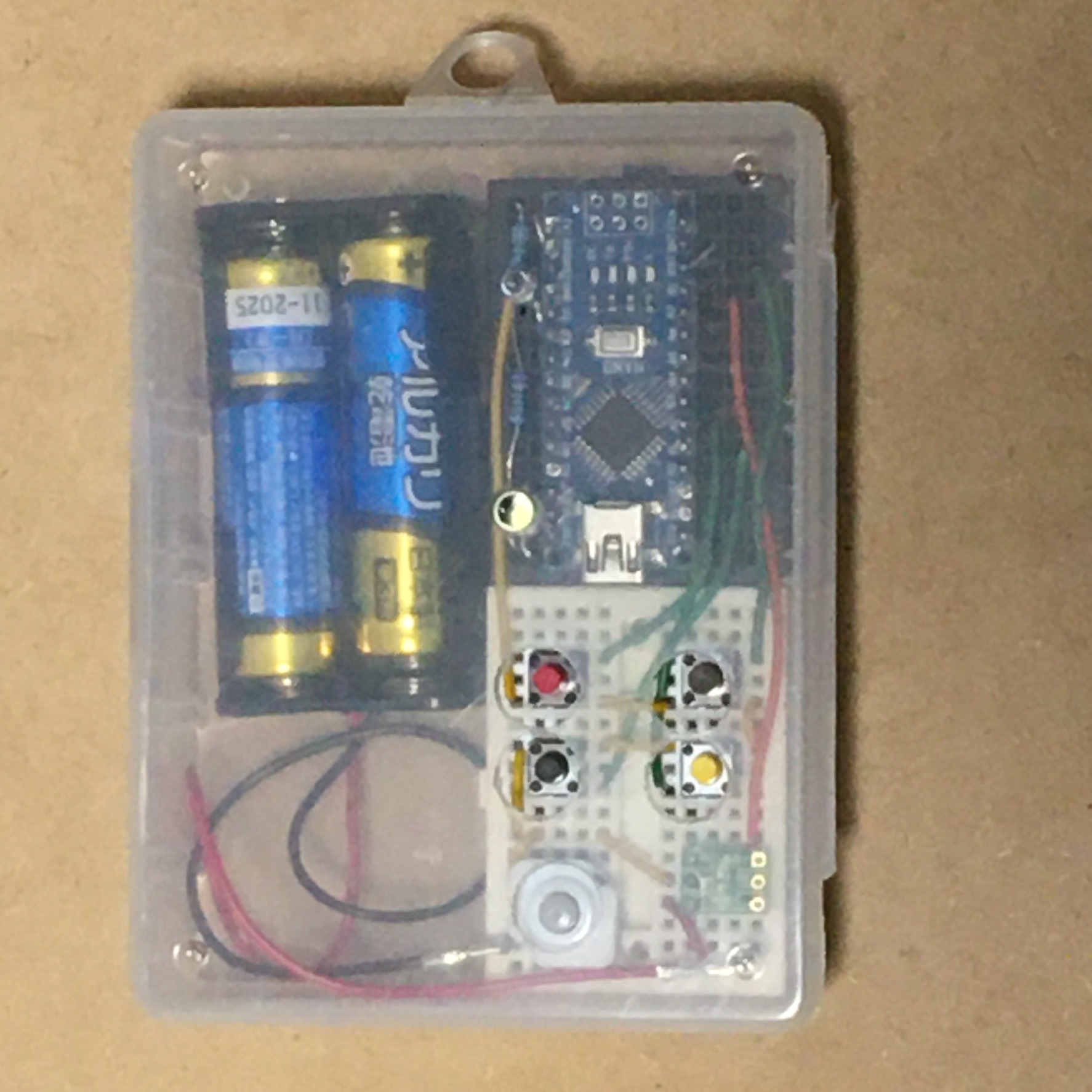

どうも電池の減るのがはやい。12日目に電圧が下がって動作しなくなった。セリアのバッテリーチャージャーはイマイチか。そこで、電源を単3✕2+DCDCコンバータ(秋月電商、300円)に変えてみた。これでようすを見るべし。。
夜ベッドで寝る前に本を読んでいる。
しかし、天井灯(Panasonic製 HK9494)がついたままいつの間にか眠ってしまうことが多い。
そこで設定時間後に消灯するリモコンを作った。
赤外線リモコンは以前オーム電機リモコンセントの赤外線リモコンを作っているので、それに従った。
赤外線LEDのパワーがちょっとショボいようで、純正に比べて届く範囲がやや狭く不満ではあるが、
これで「また朝までついとったで」と嫌味いわれることはなくなるやろう。やれやれ。
(機能)
点灯(赤ボタン)
消灯(黒ボタン)
リセット(茶ボタン、タイマーを解除するときに使用)
タイマーオン(黄ボタン)
タイマーボタンを押すと表示用LEDが点滅し30分後に消灯する。
点滅速度は残り時間30~20分の時1秒ごと、20~10分の時1/2秒ごと、10~0分の時1/4秒ごと。
(パーツ)
ブレッドボード(300穴)2枚、100均ケース(PP製)
Arduino NANO(Amazon 中国製)、赤外線LED+100ohm抵抗、白色LED+1kohm抵抗
セリアUSBチャージャー(改造して赤黒線を出す)、ジャンパー線
タクトスイッチ4個、スライドスイッチ1個、
(回路)

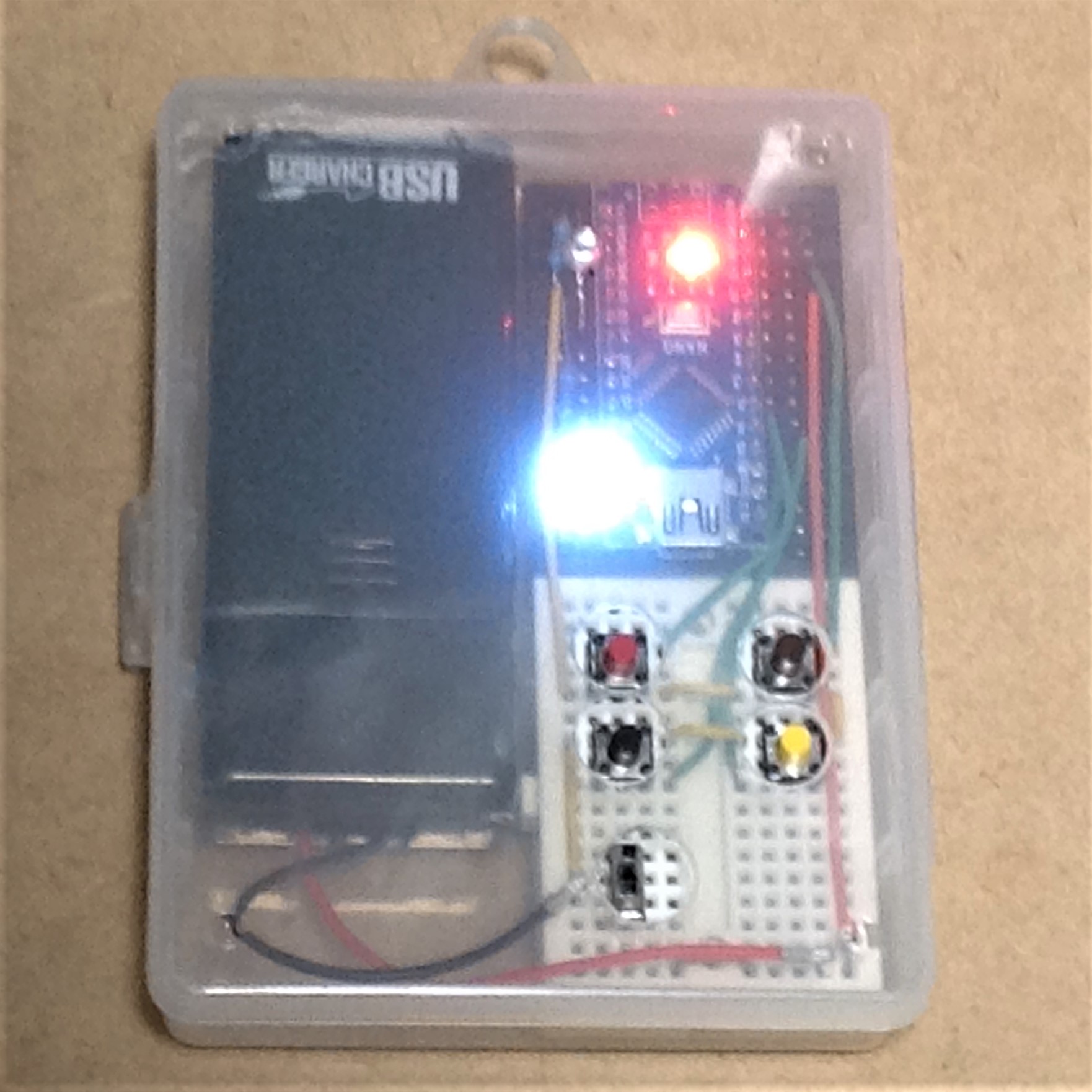

写真の通り(上側のLEDが赤外線LED、光っているLEDはタイマー作動時表示用)
(参考にしたサイト)
試行錯誤な日々 Arduinoで赤外線リモコンの値を読み取り、送信する方法
Make 赤外線リモコンを作る
hawksnowlog Arduino で赤外線信号を学習してエアコンを制御してみた
(スケッチ) → sketch のダウンロード
/* IR_timer_05.ino IR remote controller for Panasonic ceiling light (HK9494) by Arduino NANO D1/TX・ ・Vin D0/RX・ ・GND RESET・ ・RESET => reset button GND・ ・5V for received IR sensor <= D2・ ・A7 cannot use for digital input and output IR LED <= D3・ ・A6 cannot use for digital input and output D4・ ・SCL/A5 => TIMER_button D5・ ・SDA/A4 D6・ ・PIXEL/A3 D7・ ・D16/A2 => OFF_button D8・ ・D15/A1 D9・ ・D14/A0 => ON_button indicate_LED <= D10・ ・AREF D11・ ・3.3V D12・[USB]・D13 */ #include <MsTimer2.h> // using MsTimer2, cannot use tone() function // and PMW output(analogWrite()) on 13pin and 11pin #include <IRremote.h> // for send and receive of IR signal #define ON 1 #define OFF 2 #define indicate_LED 9 #define ON_button A2 #define OFF_button A1 #define TIMER_button A0 // When on Pin1, noise occured. int loop_count = 300; // 300 for 30min int khz = 38; // for IR controller IRsend irsend; // for IR controller void send_signal(int command) { // function of send IR signal if ( command == ON) { // ON signal Serial.println("ON"); unsigned int irSignal[83] = {3450, 1750, 400, 450, 400, 450, 400, 1350, 400, 1300, 400, 450, 400, 1350, 400, 450, 400, 450, 400, 450, 400, 1300, 450, 400, 450, 400, 450, 1350, 400, 400, 450, 1300, 400, 450, 400, 1300, 450, 400, 450, 450, 400, 1300, 400, 450, 450, 400, 450, 400, 450, 450, 400, 1300, 450, 350, 500, 1300, 400, 450, 400, 1350, 400, 1300, 400, 450, 400, 450, 400, 450, 450, 400, 450, 1300, 400, 1350, 350, 1350, 400, 1300, 400, 450, 400, 450, 450, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } if ( command == OFF) { // OFF signal Serial.println("OFF"); unsigned int irSignal[83] = {3450, 1700, 450, 450, 400, 450, 400, 1300, 450, 1300, 400, 450, 400, 1300, 450, 400, 450, 450, 400, 450, 400, 1300, 450, 400, 450, 400, 450, 1300, 400, 450, 450, 1250, 450, 450, 400, 1300, 450, 400, 450, 400, 450, 1300, 400, 450, 450, 400, 450, 400, 450, 400, 450, 1300, 400, 1300, 450, 1300, 400, 450, 400, 1300, 450, 1300, 400, 450, 400, 450, 450, 400, 450, 1300, 400, 1300, 450, 1250, 450, 1300, 400, 1300, 450, 400, 450, 450, 400, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } } void setup() { // Pin3 is for IR signal Serial.begin(9600); pinMode(13, OUTPUT); pinMode(indicate_LED, OUTPUT); pinMode(ON_button, INPUT_PULLUP); pinMode(OFF_button, INPUT_PULLUP); pinMode(TIMER_button, INPUT_PULLUP); } void loop() { if (digitalRead(TIMER_button) == LOW) { // switch on is LOW, because input is pullup. Serial.println("TIMER_button ON!"); send_signal(ON); // light on Serial.println("1st loop: "); for (int i = 1; i <= loop_count; i++) { // blink for 10min(600sec) Serial.print(i); Serial.print(" "); if (i % 10 == 0) { Serial.println(""); } digitalWrite(indicate_LED, HIGH); delay(1000); digitalWrite(indicate_LED, LOW); delay(1000); } Serial.println("2nd loop: "); for (int i = 1; i <= loop_count * 2; i++) { // blink for 10min(600sec) Serial.print(i); Serial.print(" "); if (i % 10 == 0) { Serial.println(""); } digitalWrite(indicate_LED, HIGH); delay(500); digitalWrite(indicate_LED, LOW); delay(500); } Serial.println("3rd loop: "); for (int i = 1; i <= loop_count * 4; i++) { // blink for 10min(600sec) Serial.print(i); Serial.print(" "); if (i % 10 == 0) { Serial.println(""); } digitalWrite(indicate_LED, HIGH); delay(1000 / 4); digitalWrite(indicate_LED, LOW); delay(1000 / 4); } digitalWrite(indicate_LED, LOW); send_signal(OFF); // light off } if (digitalRead(ON_button) == LOW) { // switch on is LOW, because input is pullup. send_signal(ON); // light on digitalWrite(13, HIGH); } if (digitalRead(OFF_button) == LOW) { send_signal(OFF); // light off digitalWrite(13, LOW); } delay(100); }
以下は天井灯(Panasonic製 HK9494)の純正リモコンををコピーした回路である。
(機能)
点灯(肌色タン)
消灯(緑色ボタン)
全灯(黄色ボタン)
明るい(水色ボタン)
暗い(白色ボタン)
常夜灯(茶色ボタン)
+
タイマーオン(赤ボタン)
タイマーボタンを押すと3つの表示用LEDが点灯し30分後に消灯する。
残り時間30~20分の時は左のLEDが点滅、20~10分の時は左のLEDは消灯し真ん中のLEDが点滅、
10~0分の時は左と真ん中が消灯し右のLEDが点滅する。
(回路)
写真の通り
(スケッチ) → sketch のダウンロード
/* IR remote controller for Panasonic ceiling light (HK9494) by Arduino NANO D1/TX・ ・Vin TIMER_button <= D0/RX・ ・GND RESET・ ・RESET GND・ ・5V for received IR sensor <= D2・ ・A7 cannot use for digital input and output IR LED <= D3・ ・A6 cannot use for digital input and output D4・ ・SCL/A5 => ON_button D5・ ・SDA/A4 => OFF_button D6・ ・PIXEL/A3 => FULL_ON_button D7・ ・D16/A2 => LIGHT_UP_button D8・ ・D15/A1 => LIGHT_DOWN_button D9・ ・D14/A0 => NIGHT_LIGHT_button D10・ ・AREF D11・ ・3.3V D12・[USB]・D13 */ //#include <MsTimer2.h> // using MsTimer2, cannot use tone() function // and PMW output(analogWrite()) on 13pin and 11pin #include <IRremote.h> // for send and receive of IR signal #define ON 1 #define OFF 2 #define FULL_ON 3 #define NIGHT_LIGHT 4 #define LIGHT_UP 5 #define LIGHT_DOWN 6 #define ON_button A5 #define OFF_button A4 #define FULL_ON_button A3 #define LIGHT_UP_button A2 #define LIGHT_DOWN_button A1 #define NIGHT_LIGHT_button A0 #define TIMER_button 0 // When on Pin1, noise occured. #define LED_1 12 #define LED_2 10 #define LED_3 8 int loop_count = 300; // for 30min int khz = 38; // for IR controller IRsend irsend; // for IR controller void send_signal(int command) { // function of send IR signal if ( command == ON) { // ON signal Serial.println("ON"); unsigned int irSignal[83] = {3450, 1750, 400, 450, 400, 450, 400, 1350, 400, 1300, 400, 450, 400, 1350, 400, 450, 400, 450, 400, 450, 400, 1300, 450, 400, 450, 400, 450, 1350, 400, 400, 450, 1300, 400, 450, 400, 1300, 450, 400, 450, 450, 400, 1300, 400, 450, 450, 400, 450, 400, 450, 450, 400, 1300, 450, 350, 500, 1300, 400, 450, 400, 1350, 400, 1300, 400, 450, 400, 450, 400, 450, 450, 400, 450, 1300, 400, 1350, 350, 1350, 400, 1300, 400, 450, 400, 450, 450, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } else if ( command == OFF) { // OFF signal Serial.println("OFF"); unsigned int irSignal[83] = {3450, 1700, 450, 450, 400, 450, 400, 1300, 450, 1300, 400, 450, 400, 1300, 450, 400, 450, 450, 400, 450, 400, 1300, 450, 400, 450, 400, 450, 1300, 400, 450, 450, 1250, 450, 450, 400, 1300, 450, 400, 450, 400, 450, 1300, 400, 450, 450, 400, 450, 400, 450, 400, 450, 1300, 400, 1300, 450, 1300, 400, 450, 400, 1300, 450, 1300, 400, 450, 400, 450, 450, 400, 450, 1300, 400, 1300, 450, 1250, 450, 1300, 400, 1300, 450, 400, 450, 450, 400, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } else if ( command == FULL_ON) { // FULL ON signal Serial.println("FULL ON"); unsigned int irSignal[83] = {3450, 1700, 450, 450, 400, 450, 400, 1300, 450, 1300, 400, 450, 400, 1300, 450, 400, 450, 400, 450, 450, 400, 1300, 450, 400, 450, 400, 450, 1300, 400, 450, 400, 1300, 450, 450, 400, 1300, 400, 450, 450, 400, 450, 1300, 400, 450, 400, 450, 450, 400, 450, 400, 450, 400, 450, 450, 400, 1300, 450, 400, 450, 1300, 400, 1300, 450, 400, 450, 400, 450, 1300, 400, 450, 400, 1300, 450, 1300, 400, 1300, 450, 1300, 400, 450, 400, 450, 400, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } else if ( command == NIGHT_LIGHT) { // NIGHT LIGHT signal Serial.println("NIGHT LIGHT"); unsigned int irSignal[83] = {3450, 1700, 450, 400, 450, 400, 450, 1300, 400, 1300, 450, 400, 450, 1300, 400, 450, 400, 450, 450, 400, 450, 1300, 400, 450, 400, 450, 400, 1300, 450, 400, 450, 1300, 400, 450, 450, 1250, 450, 450, 400, 450, 400, 1300, 450, 400, 450, 450, 400, 450, 400, 450, 400, 450, 450, 1250, 450, 1300, 400, 450, 450, 1250, 450, 1300, 400, 450, 450, 400, 450, 1300, 400, 1300, 400, 1300, 450, 1300, 400, 1300, 450, 1300, 400, 450, 400, 450, 400, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } else if ( command == LIGHT_UP) { // LIGHT UP signal Serial.println("LIGHT UP"); unsigned int irSignal[83] = {3400, 1750, 450, 400, 450, 400, 450, 1300, 400, 1300, 450, 400, 450, 1300, 400, 450, 400, 450, 450, 400, 450, 1300, 400, 450, 400, 450, 400, 1300, 450, 400, 450, 1300, 400, 450, 450, 1250, 450, 450, 400, 450, 400, 1300, 450, 400, 450, 450, 400, 450, 400, 450, 400, 450, 450, 1250, 450, 450, 400, 450, 400, 1300, 450, 1300, 400, 450, 400, 450, 450, 1250, 450, 1300, 400, 450, 450, 1250, 450, 1300, 400, 1300, 450, 400, 450, 450, 400, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } else if ( command == LIGHT_DOWN) { // LIGHT DOWN signal Serial.println("LIGHT DOWN"); unsigned int irSignal[83] = {3400, 1800, 350, 450, 400, 450, 400, 1350, 400, 1350, 350, 450, 400, 1350, 400, 450, 400, 450, 400, 450, 400, 1350, 400, 450, 400, 450, 450, 1250, 400, 500, 400, 1350, 350, 450, 400, 1350, 400, 450, 400, 450, 400, 1350, 350, 500, 400, 450, 400, 450, 400, 450, 400, 1350, 400, 1300, 400, 450, 400, 450, 400, 1350, 400, 1350, 350, 450, 400, 450, 400, 500, 400, 1300, 400, 450, 400, 1350, 400, 1300, 400, 1350, 350, 500, 400, 450, 400, }; irsend.sendRaw(irSignal, sizeof(irSignal) / sizeof(irSignal[0]), khz); } // restart MsTimer2 because when send IR signal MsTimer2 ends // MsTimer2::set(MsTimer2_set_time, flash); // call flash() every set time // MsTimer2::start(); // enables the interrupt } void setup() { // Pin3 is for IR signal Serial.begin(9600); pinMode(13, OUTPUT); pinMode(LED_1, OUTPUT); pinMode(LED_2, OUTPUT); pinMode(LED_3, OUTPUT); pinMode(ON_button, INPUT_PULLUP); pinMode(OFF_button, INPUT_PULLUP); pinMode(FULL_ON_button, INPUT_PULLUP); pinMode(LIGHT_UP_button, INPUT_PULLUP); pinMode(LIGHT_DOWN_button, INPUT_PULLUP); pinMode(NIGHT_LIGHT_button, INPUT_PULLUP); pinMode(TIMER_button, INPUT_PULLUP); } void loop() { if (digitalRead(TIMER_button) == LOW) { // switch on is LOW, because input is pullup. Serial.println("TIMER_button"); send_signal(ON); // light on digitalWrite(LED_2, HIGH); digitalWrite(LED_3, HIGH); Serial.println("1st loop: "); for (int i = 1; i <= loop_count; i++) { // blink for 10min(600sec) Serial.print(i); Serial.print(" "); if (i % 10 == 0) { Serial.println(""); } digitalWrite(LED_1, HIGH); delay(1000); digitalWrite(LED_1, LOW); delay(1000); } digitalWrite(LED_1, LOW); // output pin13(LED) (HIGH>ON LOW>OFF) Serial.println("2nd loop: "); for (int i = 1; i <= loop_count; i++) { // blink for 10min(600sec) Serial.print(i); Serial.print(" "); if (i % 10 == 0) { Serial.println(""); } digitalWrite(LED_2, HIGH); delay(1000); digitalWrite(LED_2, LOW); delay(1000); } digitalWrite(LED_2, LOW); // output pin13(LED) (HIGH>ON LOW>OFF) Serial.println("3rd loop: "); for (int i = 1; i <= loop_count; i++) { // blink for 10min(600sec) Serial.print(i); Serial.print(" "); if (i % 10 == 0) { Serial.println(""); } digitalWrite(LED_3, HIGH); delay(1000); digitalWrite(LED_3, LOW); delay(1000); } digitalWrite(LED_3, LOW); send_signal(OFF); // light off } if (digitalRead(ON_button) == LOW) { // switch on is LOW, because input is pullup. send_signal(ON); // light on digitalWrite(13, HIGH); } if (digitalRead(OFF_button) == LOW) { send_signal(OFF); // light off digitalWrite(13, LOW); } if (digitalRead(FULL_ON_button) == LOW) { send_signal(FULL_ON); // light on full digitalWrite(13, HIGH); } if (digitalRead(NIGHT_LIGHT_button) == LOW) { send_signal(NIGHT_LIGHT); // set night light digitalWrite(13, LOW); } if (digitalRead(LIGHT_UP_button) == LOW) { send_signal(LIGHT_UP); // light up digitalWrite(13, HIGH); } if (digitalRead(LIGHT_DOWN_button) == LOW) { send_signal(LIGHT_DOWN); // light doun digitalWrite(13, LOW); } delay(100); }
